ZXFELEC Technology Limited
1. MINI HDMI input port 1CH, HDMI version 1.4.
2. Dual TYPE-C input port 2CH, support blind plug, together working and mobile
charging.
3. Power key operation, easy to power down and power up.
4. Stereo headphone output.
5. Built-in stereo power amplifier, support speaker 2W@8OHM.

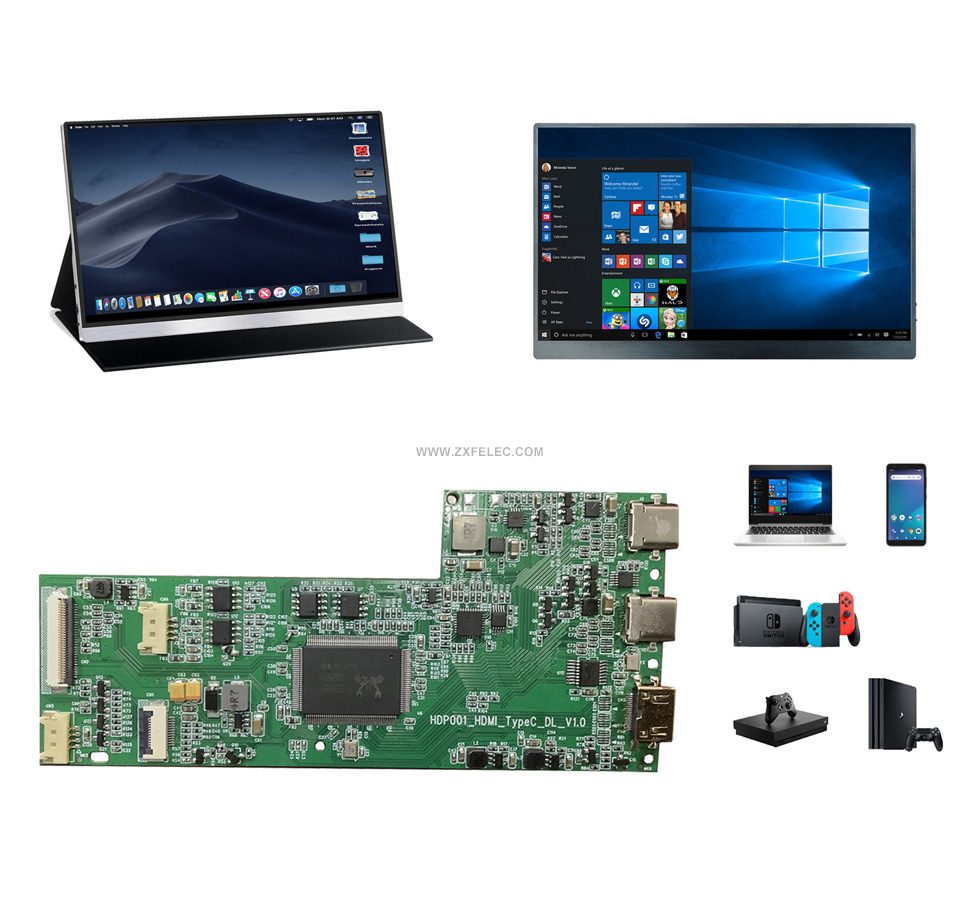

6. Compatible with mobiles, notebooks, game box and other amusement applications.
7. Compatible with Window, Mac, Android and other systems, plug and play, no need
device driver.
8. Support TouchPanel function for usb port.
9. Support EDP display, maximum support 2560*1500@60Hz display.
10. Built-in TYPE-C Power delivery.
|
Product Model |
FPMN156HDTY1M |
|
HDMI Port |
1CH HDMI1.4 1920*1080@60Hz |
|
TYPE-C Port |
2CH Blind plug, match display or power supply |
|
Touch Panel |
Option |
|
Volume control |
YES |
|
Brightness control |
YES |
|
Built-in speaker |
Stereo output 8OHM@2W speaker |
|
Power supply |
Built-in TYPE-C power delivery chip |
|
Compatible devices |
Notebook,Mobiles, Xbox, Nintendo Switch and other devices. |
|
LCD MODULE |
EDP 4LANE, Max resolution: 2560*1500@60Hz |
|
Power Supply |
TYPE-C power delivery |
