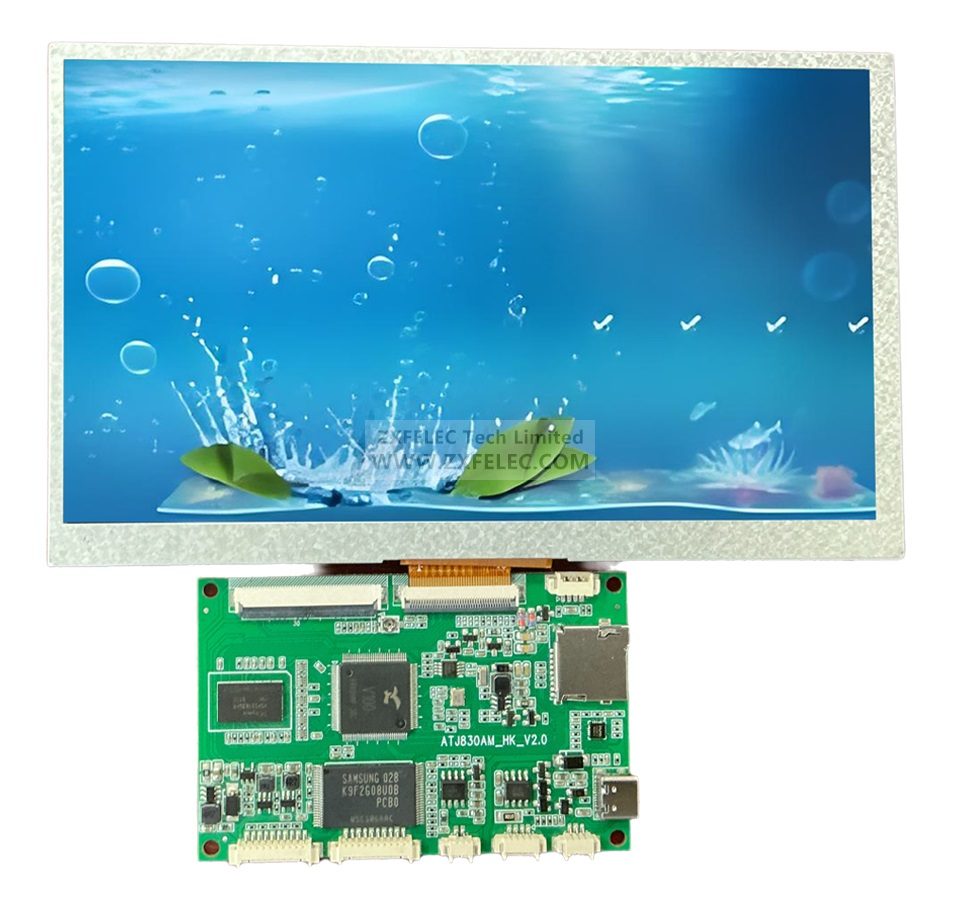

Multimedia Control Board

Actions V100 Video Player Board | Suitable for digital photo frames, video advertising,and digital clocks, providing a high-performance multimedia audio and video solution.

Application and Function:

1.  Digital Photo Frame
2.  Video Manual Book
3.  Video Advertising Machine
4.  Video Greeting Card
5.  MP4/MP5 Video Player
6.  Digital Clock
7.  Digital Calendar
Description Inquery
Basic Specifications
1
Model:ZXFELEC_ZFLAME.VMB02
10
Backlight Brightness Adjustment.
2
Name:V100 Player mainboard
11
Built-in RTC module.
3
CPU:  Actions V100 MIPS
12
Supports up to 10 buttons.
4
Memory: DDR 64MB ,Nand 256MB
13
Integrated battery management unit.
5
Expandable TF card up to 128GB.
14
Onboard Hall detection switch.
6
TYPE-C supports Device Mode.
15
Power supply: 5V input
7
Supports External UART Control
16
Dimensions: 55mm (W) × 85mm (L).
8
Speaker Amplifier: 2W@8Ω.
17

9
Display: RGB/LVDS, up to 1366×768
18




Product Description:

1. Powered by the Actions V100 MIPS-based processor, featuring a dedicated video player.
2. Onboard DDR2 64MB and NAND 256MB system storage.
3. Integrated H.264/MPEG full-format decoding, supporting up to 1920x1080P@30fps.
4. JPEG Baseline hardware decoding, supporting up to 8176×8176.
5. Supports multiple audio decoding formats, including MPEG/MP3/WMA/AAC.
6. TYPE-C supports power supply and file transfer functions.
7. UART serial port supports external control expansion.
8. Integrated audio amplifier, directly driving a 2W@8Ω speaker.
9. Supports up to 10 button key inputs, with grouping and button-triggered playback.
10. Supports TF cards, with a maximum capacity of 128GB.
11. TF card can be used for video content updates.
12. Playback content can be selected from internal storage or TF card storage.
13. Built-in battery charging management.
14. Supports built-in lithium battery.
15. Universal 40PIN/50PIN RGB/LVDS display interface.
16. Compatible with multiple display sizes, including 7-inch, 8-inch, and 10.1-inch.
17. Built-in multiple playback modes, such as on-demand and loop playback.
18. Playback modes can be customized according to customer requirements.
19. Compact board design (50mm W × 80mm L), easy to install and use.
20. Power supply: Built-in battery or DC 5V via TYPE-C port.

Product Applications:

1.
Children's Story Machine:  Designed for early childhood education, featuring a vast collection of stories, nursery rhymes, and more. Supports voice interaction, Bluetooth playback, and sleep timer.
2.
Video Greeting Card:  Supports HD video playback with a built-in lithium battery, ideal for brand promotion, corporate marketing, holiday gifts, and wedding invitations.
3.
Weather Clock:  Integrates time display, temperature & humidity monitoring, weather forecast, and voice announcements. Suitable for homes, offices, and hotels.
4.
Digital Photo Frame:  Supports HD video decoding and automatic slideshow. Compatible with USB drives and TF cards for playback. Ideal for home use and the gift market.
5.
Video Player:  Supports multiple video format decoding, features a high-definition large screen, and includes built-in large-capacity storage, suitable for personal entertainment.
6.
Video Advertising Display:  Equipped with an HD LCD screen and multiple playback modes, ideal for shopping malls, hotels, retail chains, and exhibition halls.

Application Examples:

Name: Digital Photo Frame
Features: Supports high-quality image, video, and music playback. Features an automatic slideshow with smooth transition effects, scheduled power on/off, and built-in clock/alarm functions. Includes a motion sensor for automatic activation when someone approaches, adding convenience and enhancing the user experience.

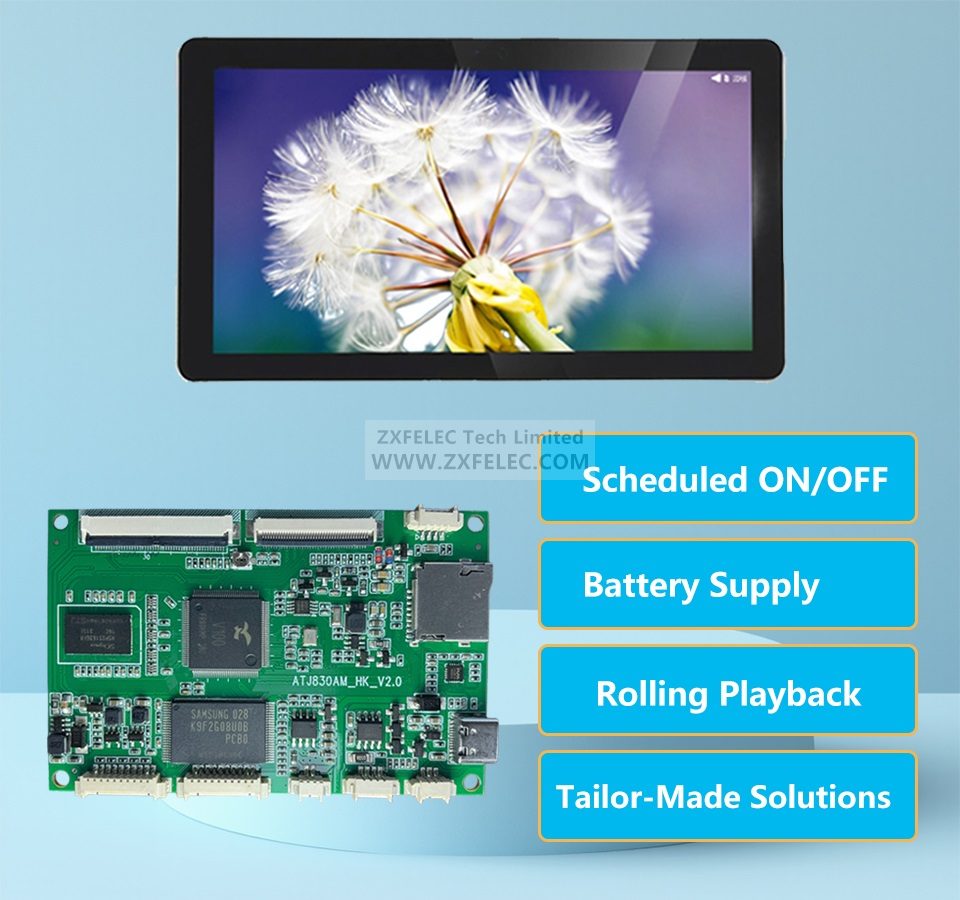

Name: Video Advertising Display
Features: Supports continuous playback of videos and images, with the ability to display interstitial ads. Connects to Wi-Fi for seamless remote content scheduling, device monitoring, and control, making it ideal for dynamic advertising and real-time updates.

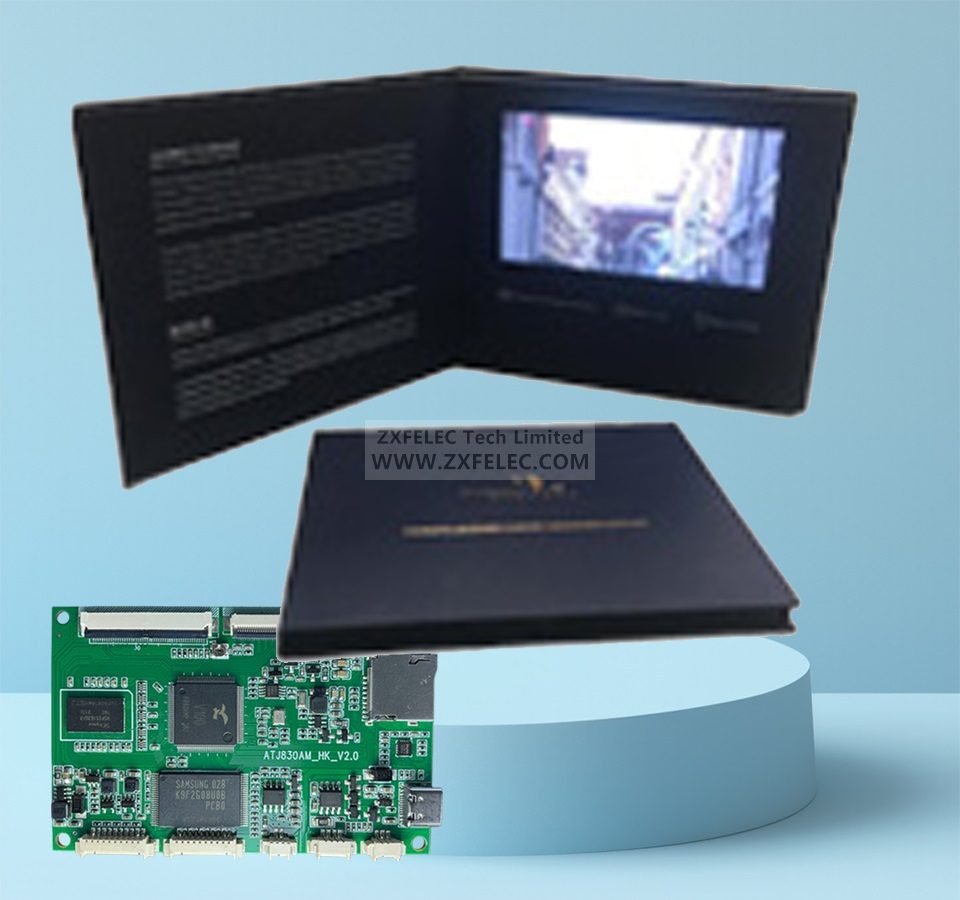

Name: Video Greeting Card
Features: Supports high-definition MP4 video playback with an ultra-thin, lightweight design. Equipped with a built-in lithium battery and convenient USB charging for easy updates. Perfect for brand promotion, corporate marketing, holiday gifts, and wedding invitations, offering a unique and interactive experience.

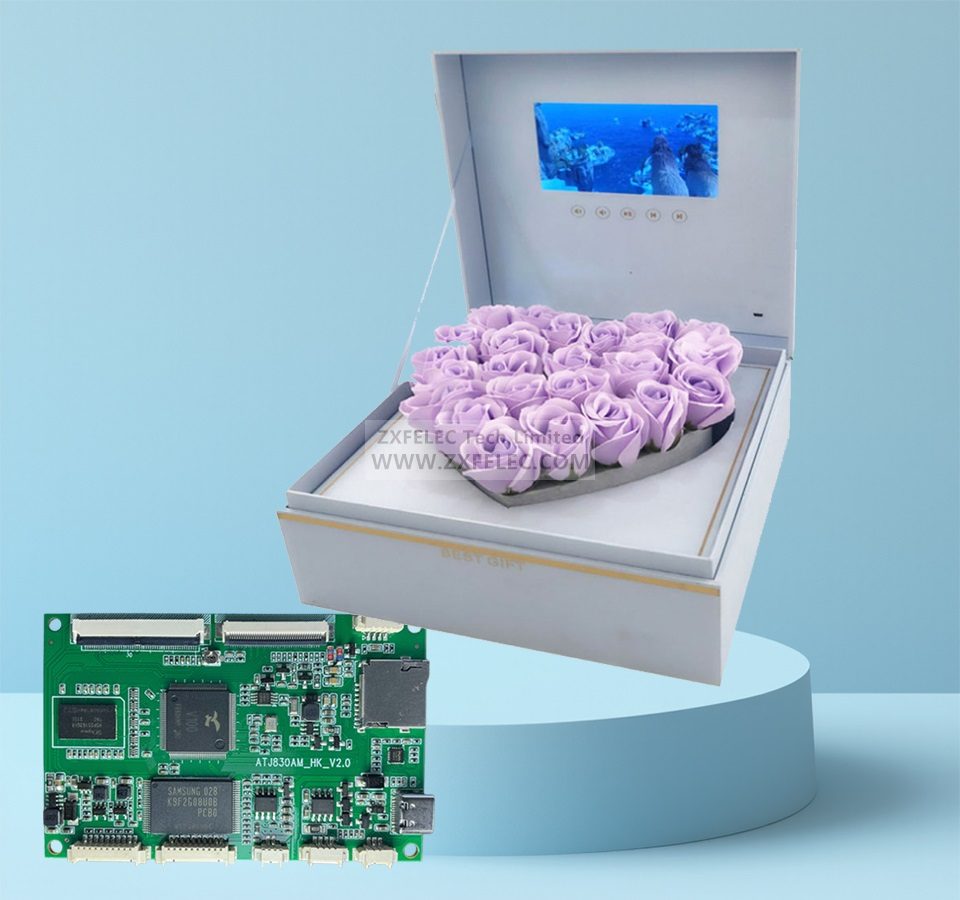

Name: Gift Packaging Box
Features: This elegant packaging box features an embedded HD display that plays stunning product showcase videos or custom images, elevating the presentation of jewelry with a touch of luxury and uniqueness. Perfect for both gifting and personal use, it adds a memorable and sophisticated element to any occasion.
Name: Smart Lightbox Advertising
Description: supports various LED/LCD screens, enabling flexible content editing and multiple playback modes such as scheduled playback, loop playback, and interactive display. The system supports dynamic ads, static images, and video playback, ensuring high visibility and engagement in high-traffic areas. Suitable for shopping malls, airports, train stations, and metro systems.
