ZXFELEC Technology Limited
|
1
|
Model：ZXFELEC_ZFLAME.VBD01
|
10
|
External LED Backlight module |
|
2
|
Name：T113S3 Video Mainboard
|
11
|
External 2CH USB host Ports |
|
3
|
CPU: T113S3, Dual-core Cortex-A7
|
12
|
Backlight Brightness Adjustment
|
|
4
|
DDR Memory: Built-in 128MB DDR3
|
13
|
WiFi 2.4G/5G + BLE |
|
5
|
Storage: 8GB/16GB eMMC |
14
|
Supports External UART Control |
|
6
|
Integrated 4G/5G CAT1 Module
|
15
|
ADC Key Input and GPIO Expansion |
|
7
|
External TF/USB storage up to 128GB
|
16
|
Power Supply: DC 12V Input |
|
8
|
Audio Amplifier: 2ch*15W@8Ω |
17
|
Operating System: Tina Linux OS
|
|
9
|
MIPI/LVDS/EDP up to 1920×1080 |
18
|

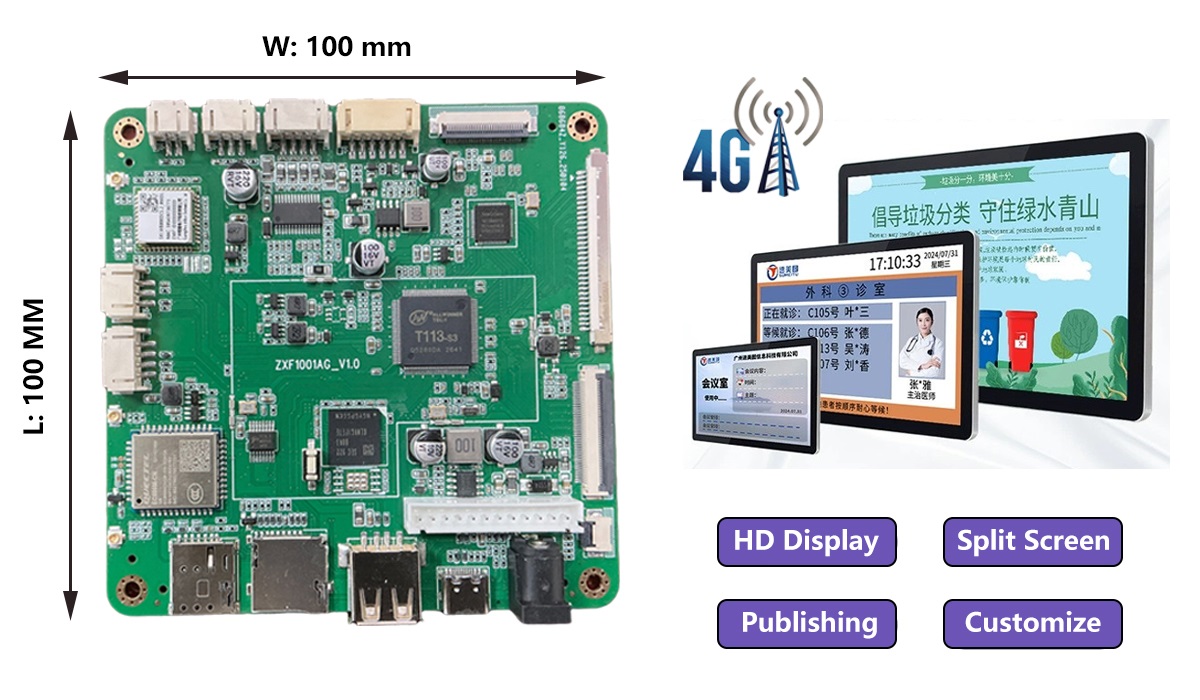

Dimensions: 100mm(W) × 100mm(L) |

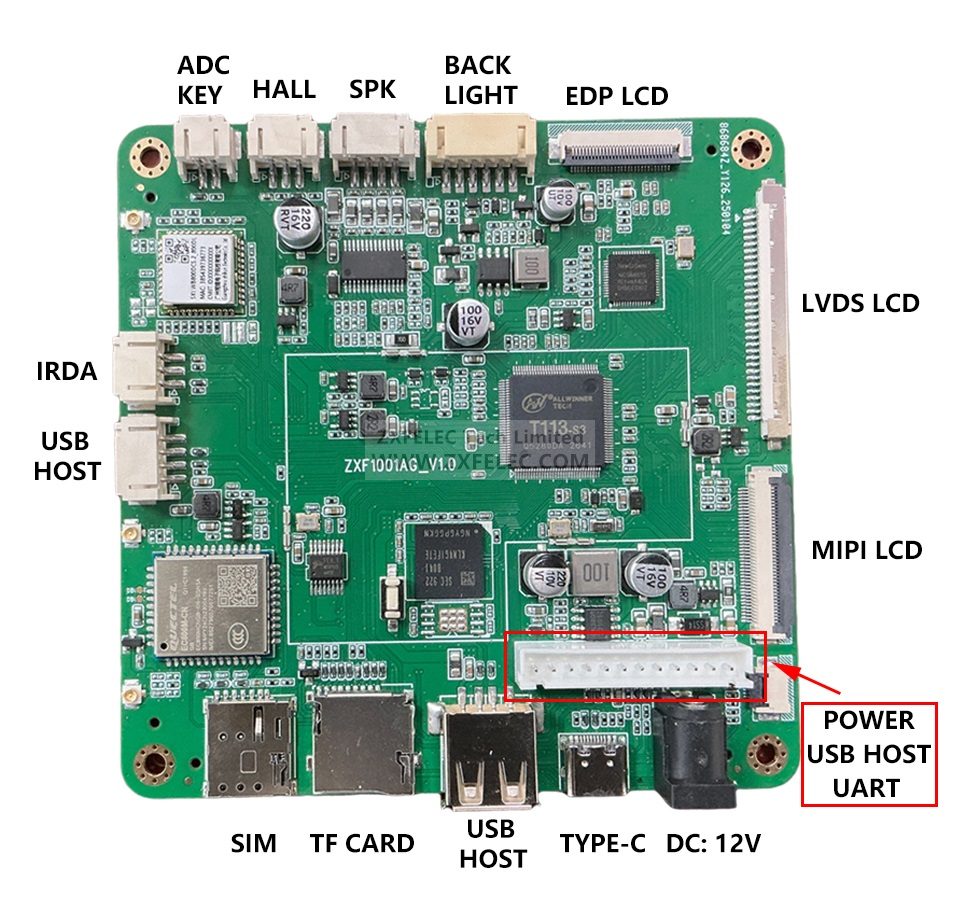

| 1. | Powered by Allwinner T113S3 dual-core Cortex-A7 1.2GHz, supporting NEON and FPU. |
| 2. | DDR Memory: Built-in 128MB DDR3; Onboard Storage: 8GB/16GB eMMC. |
| 3. | Wireless Module: WiFi 2.4G/5G + BLE. |
| 4. | Integrated 4G/5G LTE Communication Module, supporting global frequency bands. |
| 5. | Full-format video decoding: H.264/H.265/MPEG/AVI, up to 1080P@30fps. |
| 6. | Supports JPG/PNG/BMP, maximum resolution up to 8192×8192 pixels. |
| 7. | Audio format support: MP3/WMA/AAC/FLAC. |
| 8. | Onboard USB ports: USB2.0 HOST and Type-C DEVICE. |
| 9. | Expandable UART communication and control. |
| 10. | Supports direct playback from TF card and USB. |
| 11. | Multiple modes: Video/image mixed playback, sequential playback, split-screen playback. |
| 12. | Supports importing playback files from USB or TF card to internal storage. |
| 13. | Onboard 2CH × 15W speaker amplifier, directly drives 8Ω speakers. |
| 14. | Multiple display interfaces supported: MIPI/EDP/LVDS, maximum output up to 1920×1080. |
| 15. | Supports key input, IR remote control, and GPIO expansion. |
| 16. | Onboard dual USB HOST expansion interfaces. |
| 17. | Onboard LCD backlight control interface, supports PWM dimming. |
| 18. | Customized network remote content synchronization and public information broadcasting. |
| 19. | Power Supply: DC 12V/2A input. |
| 20. | Dimensions: 100mm(W) × 100mm(H). |
|
1.
|
High-Definition Video Display: Supports seamless HD video playback for malls, exhibition halls, museums, and other public venues. Enables targeted content delivery for effective marketing.
|
|
2.
|
Electronic Shelf Labels for Retail: Displays pricing, promotional ads, and product information in multiple formats with high visual impact.
|
|
3.
|
Smart Cabinet Panels: Real-time status display, touch interaction, and remote management for applications such as parcel lockers, vending machines, and self-service kiosks.
|
|
4.
|
Networked Video Advertising: Supports remote content updates, status monitoring, and anomaly alerts. Ideal for advertising screens in buses, subways, and other digital signage applications.
|
|
5.
|
Elevator Floor Displays: Real-time floor information and public content broadcasting for commercial buildings, residential communities, and smart infrastructure.
|
|
6.
|
Smart Lightbox Advertising: Compatible with LED/LCD screens for dynamic content management, perfect for high-traffic areas like shopping districts, airports, train stations, and metro systems.
|
|
|
Name: Elevator Smart Display
Description: Provides real-time elevator status updates, floor information, and public announcements. Supports multimedia content, including text, images, and videos, for enhanced communication. Enables the publication of safety guidelines, advertisements, and building notices, improving user experience and operational efficiency. Suitable for commercial buildings, residential complexes, and public transportation hubs.
|
|
|
Name: Smart Retail Electronic Shelf Label
Description: Supports real-time digital price display, promotional video playback, and detailed product information showcasing. Enables remote content updates to ensure accurate pricing and dynamic promotions. Supports barcode and QR code integration for seamless customer interaction and enhanced shopping experiences. Ideal for supermarkets, convenience stores, and retail chains.
|
|
|

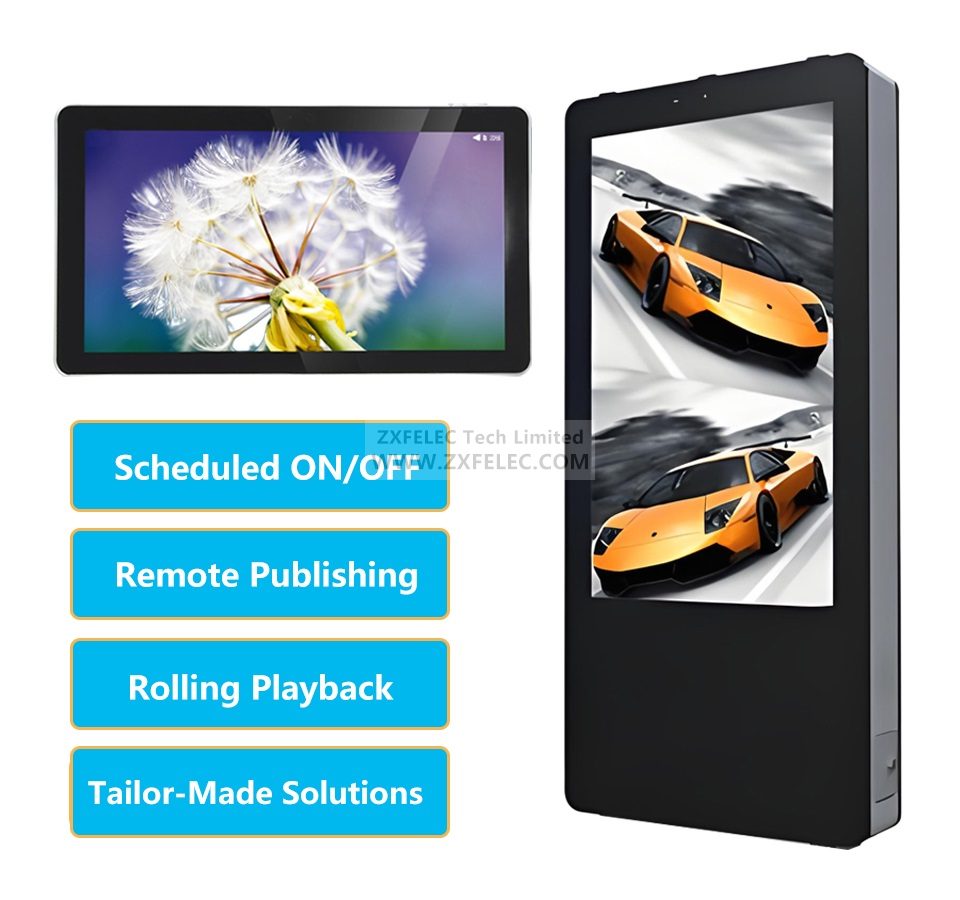

Name: Networked Video Player
Description: Supports remote content updates, real-time device status monitoring, anomaly alerts, customizable display content and modes, and display performance feedback for optimized advertising and information broadcasting.
|
 |
Name: Smaat Smart Shared Charing Cabinet
Description: supports battery status monitoring, charging progress display, remaining time and cost tracking, QR code payment, and remote management. Equipped with overload protection and anomaly alerts to ensure device safety.
|
 |
Name: Smart Lightbox Advertising
Description: supports various LED/LCD screens, enabling flexible content editing and multiple playback modes such as scheduled playback, loop playback, and interactive display. The system supports dynamic ads, static images, and video playback, ensuring high visibility and engagement in high-traffic areas. Suitable for shopping malls, airports, train stations, and metro systems.
|
