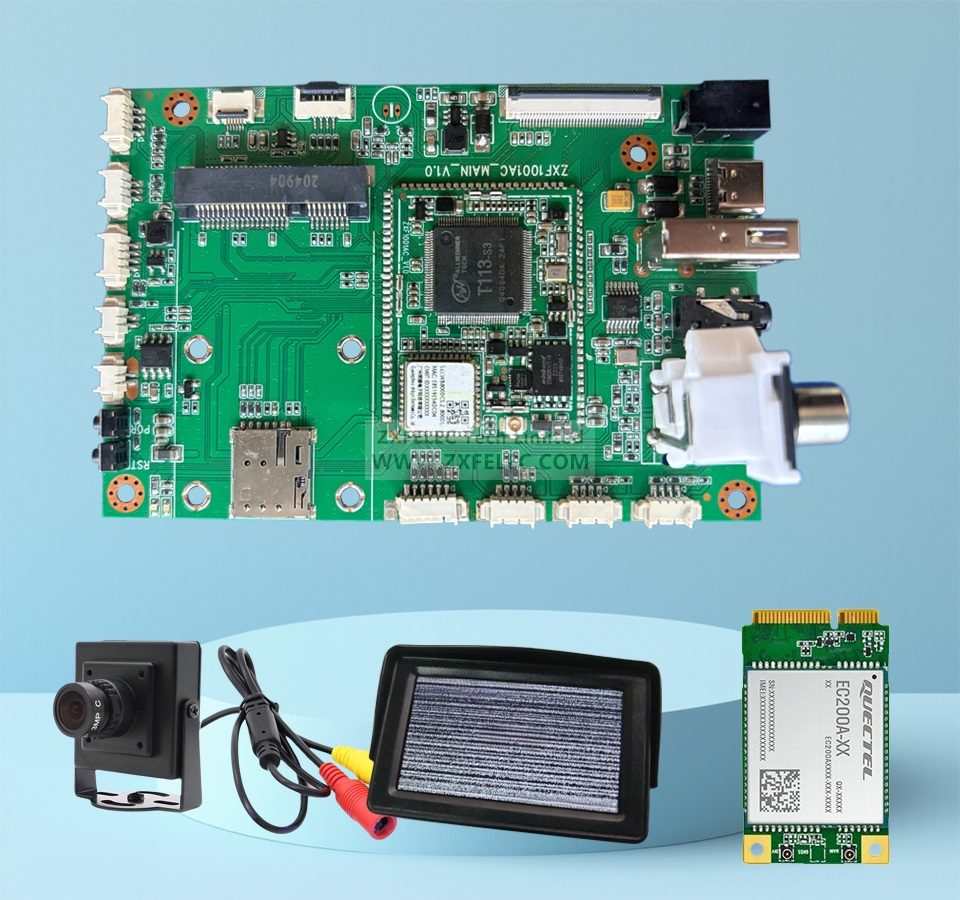

T113S3 Evaluation Kit, Integrated with 4.3-inch Touch Screen, WIFI/BLE, CVBS Input, HMI Display & Controller

Application and Function:

1.  In-vehicle Central Display
2.  Digital Signage
3.  CVBS Camera Monitor
4.  Digital Broadcast Radio
5.  Medical Monitoring Terminals
6.  Smart Gateway Devices
7.  RTSP Video Streaming Solutions
8.  Instrument Cluster Display
Description Inquery
Basic Specifications
1
Model：ZXFELEC_ZFLAME.CRB02
10
MIPI/LVDS/RGB LCD up to 1920x1080
2
Name：T113S3 Core Module
11
 Backlight Supports PWM dimming
3
CPU: T113S3, Dual-core Cortex-A7
12
Dual-channel DMIC Audio Capture
4
DDR Memory: 128MB DDR3 on chip
13
 SPI Expansion Port
5
 Storage: SPI NAND, 256MB
14
 Dual UART Expansion
6
Wireless: WIFI 2.4G/5G + BLE
15
 I2C Touchscreen + additional 1ch
7
H.264/H.265/MPEG full-format
16
 USB Port: HOST + OTG
8
 2D graphics Accelerator for UI.
17
Operating System: Tina Linux OS
9
CVBS Input: 2ch supports NTSC/PAL
18
 Dimensions: SOM 30mm x 40mm



Product Description：
 1. Equipped with T113 processor, supporting efficient multitasking for smooth performance.
 2. Built-in 128MB DDR3 and onboard 256MB SPI NAND for system storage.
 3. Supports 1080P video decoding, network screen mirroring, and CVBS input, ideal for multimedia applications.
 4. Integrated G2D graphics acceleration engine, supporting Bitblt, color conversion, scaling, rotation, and more.
 5. Full-format video decoding: H.264/H.265/MPEG, with up to FHD (1920x1080)@60fps playback.
 6. Supports JPEG/MJPEG encoding with input image scaling.
 7. UI OSD supports layered display for interfaces and system overlays.
 8. Dual CVBS video inputs.
 9. 1-channel AMIC + multiple DMIC input sampling.
 10. Stereo Line-in audio input.
 11. High-speed USB 2.0 HOST, allowing connection of external peripherals such as mice, keyboards, or hard drives.
 12. Dual USB ports: 1CH HOST + 1CH DEVICE.
 13. Hardware security engine supports AES/DES/3DES/RSA/SHA-1/SHA-256, with secure boot support.
 14. Built-in RTC clock, supports ultra-low-power (<3uA) RTC mode for long battery applications.
 15. Multiple peripheral interfaces: 2 PWM channels, 1 SPI, 2 I2C, 1 IR input, SAR ADC, GPIO, and more.
 16. Dual UART, for debugging and communication.
 17. Onboard WiFi 2.4G + BLE connectivity.
 18. Low-power design with optimized power management, ideal for industrial equipment and IoT terminals.
 19. Operating system: Tina Linux OS, offering a mature and stable system environment.
 20. Dimensions: 30mm x 40mm, stamp hole installation.

Product Applications：
 1. Video Display: HD playback for malls, exhibitions, and museums, delivering targeted content and precise marketing.
 2. Electronic Shelf Labels: Dynamic price tags and product info with promotional videos for eye-catching displays.
 3. CVBS Monitor: Direct CVBS camera input with RTSP support for real-time remote monitoring.
 4. Network Ad Screens: Remote content updates, status monitoring, and fault alerts for bus, subway, and public displays.
 5. Smart Doorbell: Real-time video calls, remote monitoring, night vision, motion detection, and alerts.
 6. Network Audio Broadcast: Digital audio streaming, live broadcasts, and on-demand playback with cross-platform access.
 7. Fridge Display Panel: Real-time status, touch controls, custom UI, and smart connectivity.
 8. E-bike Dashboard: Comprehensive data display, phone navigation sync, smart alerts, and fault notifications.

Application Examples:

Product Name:  CVBS Monitor
Product Features:  Connects to CVBS analog cameras for real-time video display and monitoring. Supports RTSP  video streaming over Wi-Fi, 4G/5G networks for remote surveillance and abnormal event alerts.

Product Name:  Smart Electronic Shelf Label
Product Features:  Integrates electronic price tags, promotional video playback, and product information display. Supports real-time remote content updates. Offers versatile display formats (images, text, videos) presented on a high-definition screen, delivering strong visual impact to enhance promotional effectiveness and customer engagement.
Product Name:  Video Advertising Player
Product Features:  Supports remote content updates for efficient and convenient management. Equipped with device status monitoring and fault alert functions to ensure stable operation. Allows users to customize display content and modes, providing feedback on display performance to optimize advertising effectiveness.
Product Name:  Smart Lightbox Advertising
Product Features:  Compatible with various LED/LCD screens, supporting flexible editing and customization of advertisement content. Offers diverse playback modes with the ability to switch display styles as needed. With remote publishing and update functions, users can easily manage and refresh advertising content, enhancing campaign efficiency.
Product Name:  Industrial Display HMI
Product Features:  Powerful graphics processing capabilities, compatible with GUI graphic processing software such as QT and LVGL for smooth performance. Supports remote transmission and control with additional features like network, RS485, RS232, tailored to specific application scenarios.
Product Name: Indoor Building Intercom Phone
Product Features:  The indoor building intercom phone supports 7-inch and 10.1-inch HD display screens, offering clear and smooth communication. It integrates network features like SIP, allowing connection with external devices and compatibility with smart home systems. Additionally, it provides convenient remote query capabilities.
