ZXFELEC Technology Limited
|
1
|
Model：ZXFELEC_NETHEART.Kit01
|
10
|
Onboard 2-channel DMIC input.
|
|
2
|

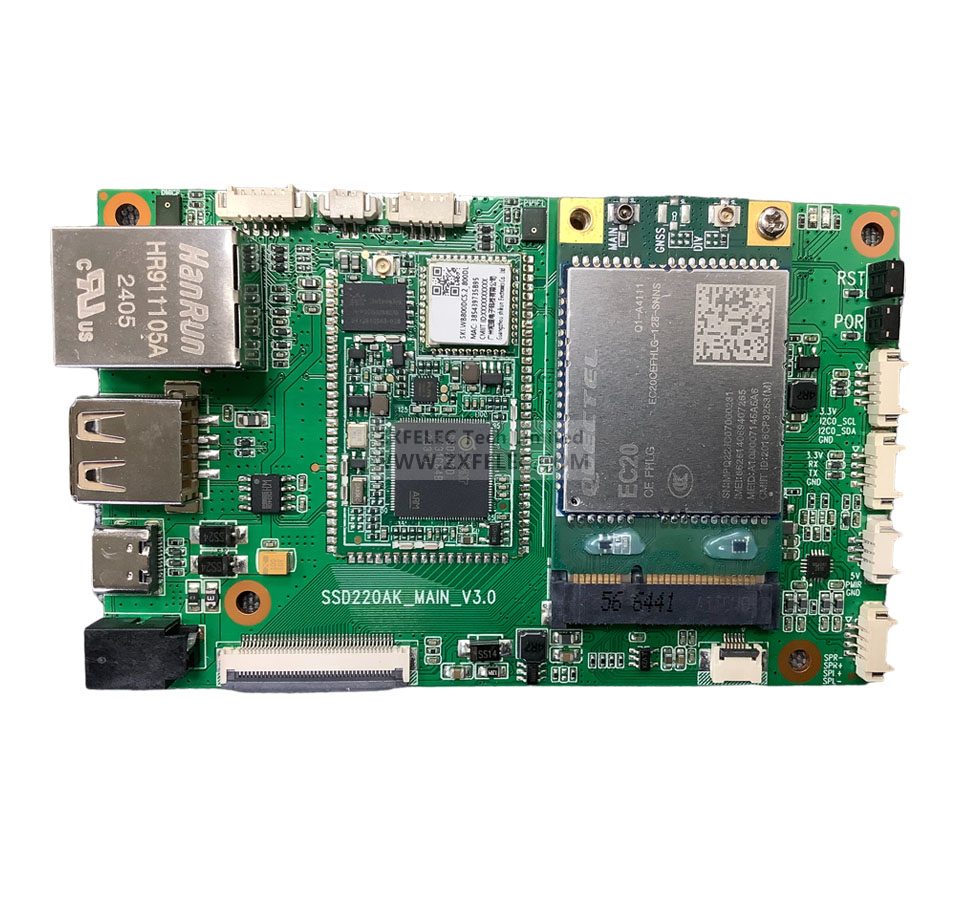

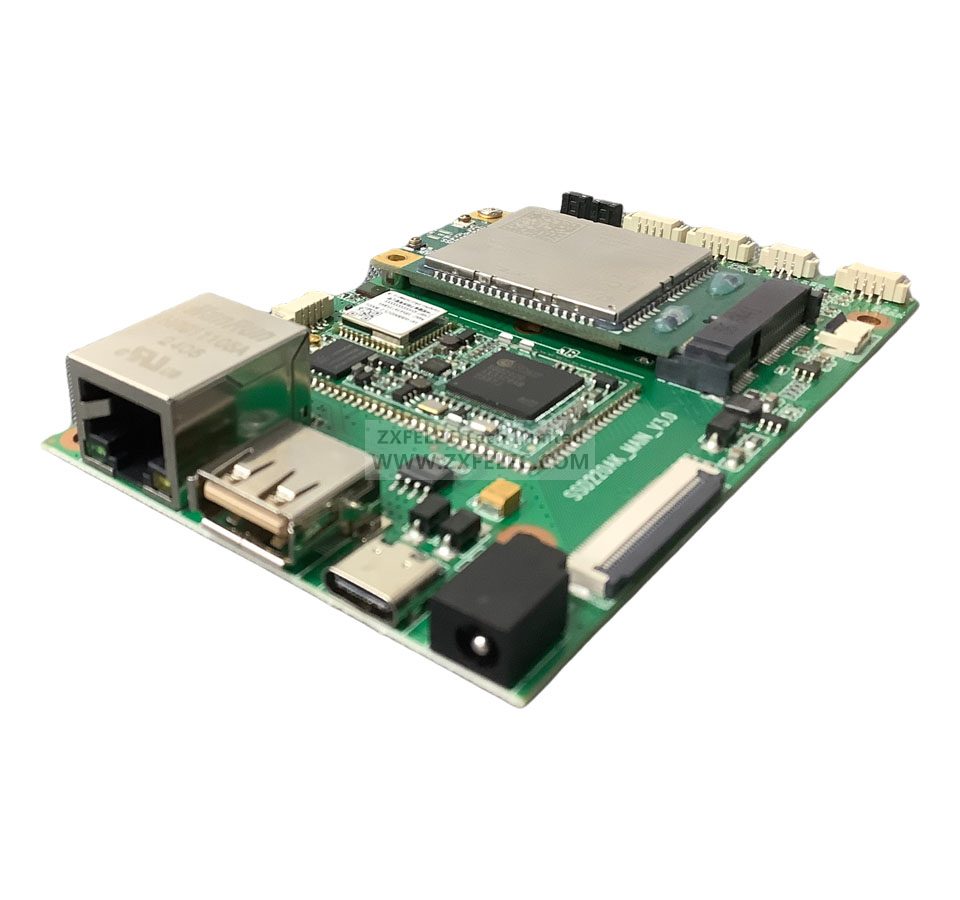

Name：SSD202D development Kits
|
11
|
USB HOST：USB2.0 HOST full speed
|
|
3
|
Core: NETMBD202DC01 SSD202D chip
|
12
|
TYPE-C: One port with UART0 debug
|
|
4
|
DDR cache：SIP DDR3 128MB.
|
13
|
UART: 1 port UART1
|
|
5
|
Memory：SPI NAND 128MB.
|
14
|
I2C: 1 port, max speed: 400KHz
|
|
6
|
Wireless: WIFI 2.4G + BLE
|
15
|
Speaker output: 2 * 2W@8R
|
|
7
|
Ethernet: RJ45 port
|
16
|
4G LTE module(option）
|
|
8
|
video decoder: H.264/H.265 HW decoder.
|
17
|
Operating System: Supports Linux OS
|
|
9
|

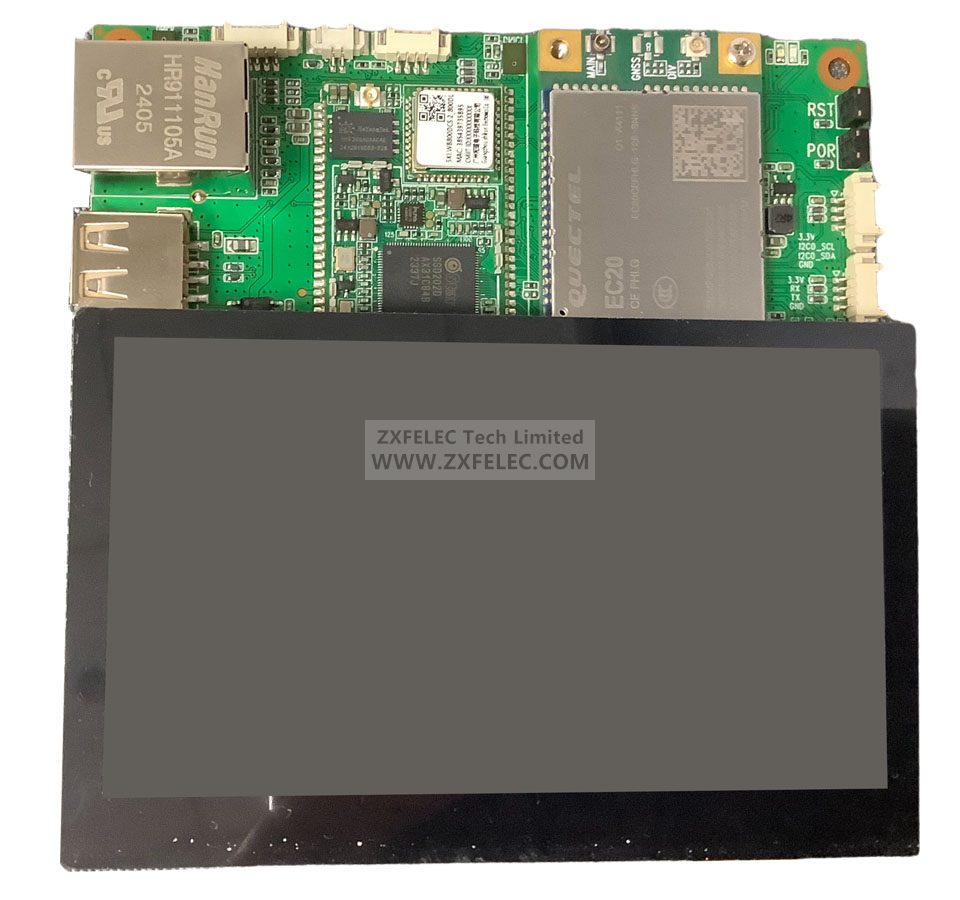

LCD：4.3inch with capacitor touch
|
18
|
PCBA Dimensions: 95(W) * 65(H) (MM)
|

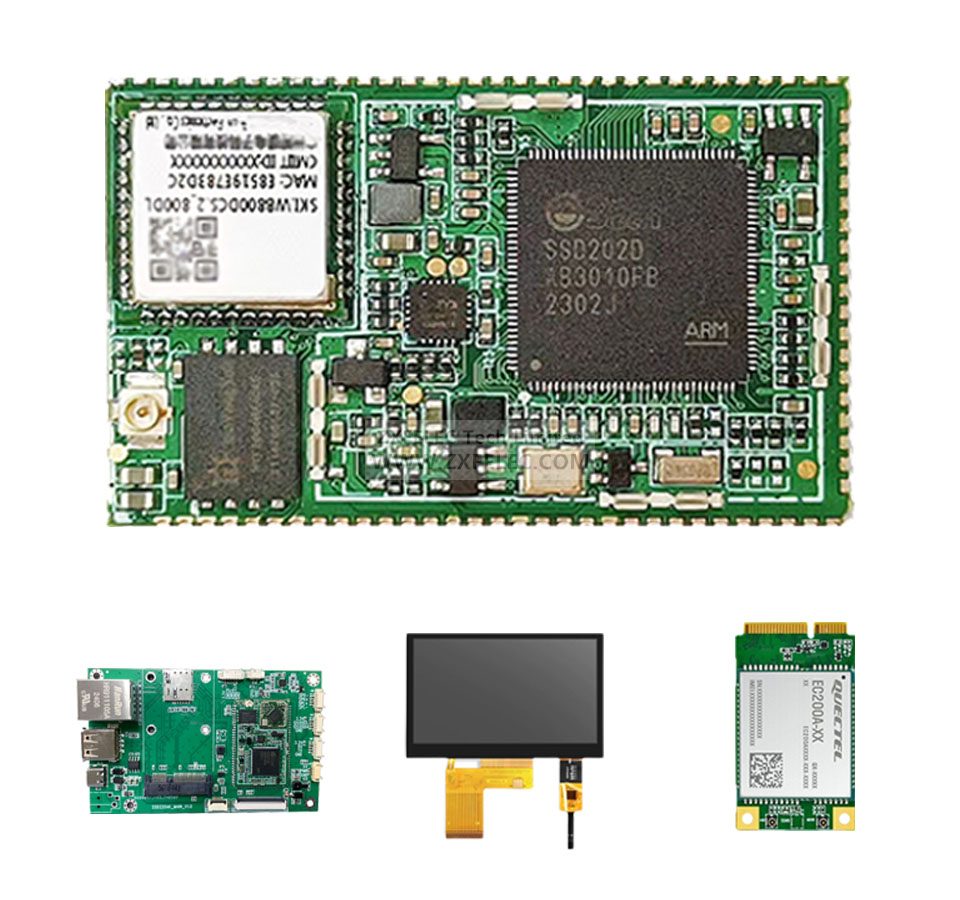

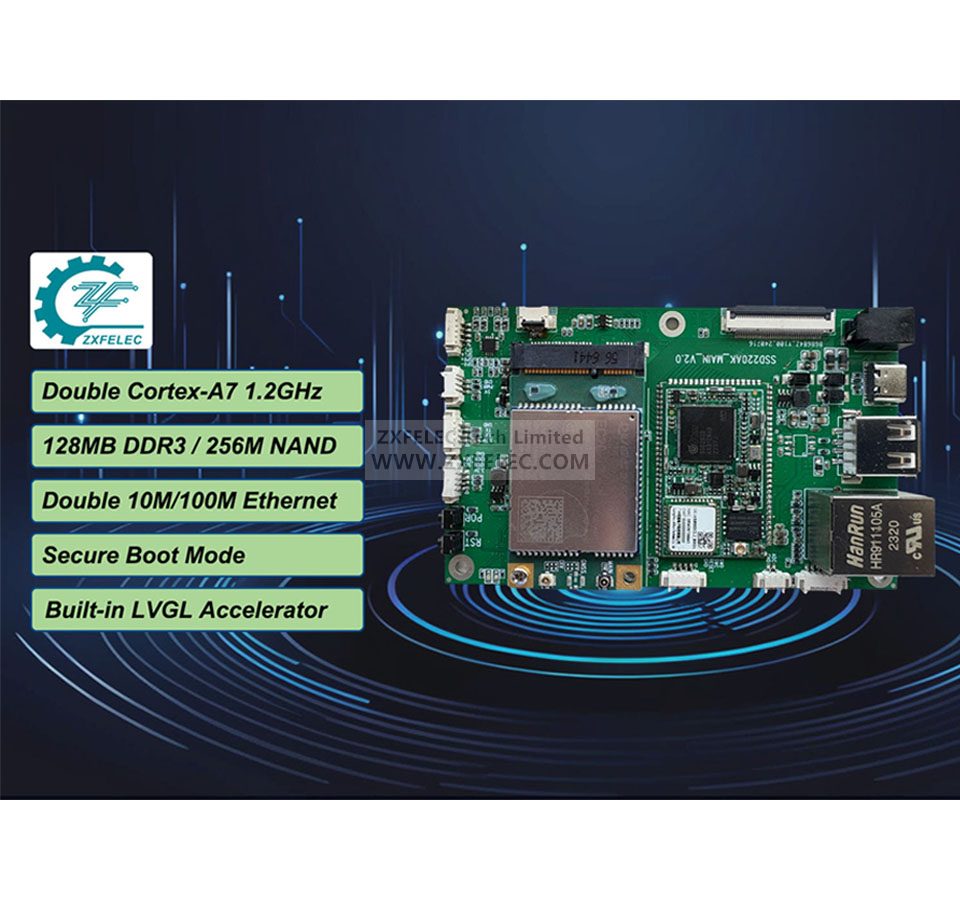

| 1. Core Module: NETMBD202DC01 module with dual-core ARM Cortex-A7 1.2GHz processor. |
| 2. Video decoder: H.264/H.265 hardware decoding, max resolutions up to 1920*1080@30Hz. |
| 3. Memory and Storage: SIP 128MB DDR3 RAM and 256MB Flash ROM. |
| 4. Display: Integrated 4.3-inch LCD screen with 480*272 resolution and capacitive touch. |
| 5. USB Host: Supports Udisk, mice, keyboards, cameras, and other peripherals. |
| 6. Ethernet: Onboard RJ45 10/100M Ethernet, compliant with IEEE 802 network standards. |
| 7. Microphones: Onboard dual DMIC digital microphones. |
| 8. Audio Output: Stereo amplifier output: 2 × 2W @ 8Ω. |
| 9. IR Control: Infrared remote control with IR input support. |
| 10. IIC Port: I2C communication port with a maximum communication rate of 400kHz. |
| 11. UART Port: UART communication port with a baud rate of 115200. |
| 12. SPI Port: SPI communication port, expandable for external storage. |
| 13. Wi-Fi/Bluetooth: Onboard 2.4G Wi-Fi + BLE. |
| 14. 4G LTE: Onboard 4G LTE module supporting global frequency bands. |
| 15. Type-C Port: Built-in UART-to-USB converter for local debugging. |
| 16. Network Debugging: Supports NFS network disk debugging. |
| 17. TFTP Support: Supports TFTP for network application downloads. |
| 18. Operating System: Runs Linux OS with an open SDK. |
| 19. GUI Development: Integrated LVGL GUI development system. |
| 20. Power Supply: DC 5V input. |
| 21. Board Dimensions: 95mm (W) × 65mm (H). |
| 1. Smart Security Devices: Such as doorbell cameras, smart locks, and surveillance terminals. |
| 2. Display Control Panels: Home control screens, industrial HMI, and central control panels. |
| 3. Video Display Tags: Shelf price tags, advertising screens, and dynamic information display. |
| 4. Wireless Casting Devices: Wireless casting adapters and multimedia playback devices. |
| 5. Smart Appliances: Refrigerator displays, washing machine panels, and microwave oven. |
| 6. Charging Station Control: Display and control terminals for electric vehicle charging stations. |
| 7. Audio Broadcasting Systems: Intelligent public broadcasting and background music players. |
| 8. Digital Signage: Indoor and outdoor advertising screens and information display terminals. |
| 9. Medical Terminal Devices: Patient monitoring screens and medical information systems. |
| 10. Retail POS Terminals: Interactive checkout displays and product promotion screens. |
| 11. Educational Devices: Smart classroom displays and multimedia learning equipment. |
| 12. Smart Meeting Devices: conference nameplates, meeting sign-in, recording & playback. |
| 13. Industrial IoT Solutions: Machine monitoring interfaces and remote control panels. |
 |
Name: Elevator Smart Display
Description: elevator status, floor information, and broadcasts messages. Connects to the network for remote monitoring and the publication of safety information. |
 |
Name: Indoor Video Intercom
Description: Indoor video intercom system with support for 7-inch, 10.1-inch, and other high-definition screens. It integrates network functions such as SIP and can connect to smart home systems for remote access and monitoring. |
 |
Name: Industrial Display HMI
Function: Equipped with powerful graphics processing capabilities, compatible with GUI software like QT and LVGL for smooth operation. It supports remote transmission and control via network, RS485, RS232, and other interfaces, tailored to meet the needs of specific application scenarios. |
 |
Name: Digital Price Tag for Retail
Function: Supports dual-screen display for showing different product information on the front and back, or single-screen display for product and price details. It allows flexible combinations and uses video or images to showcase detailed product specifications. Product content is updated and maintained through the ERP system, helping reduce operational costs for retailers. |
 |
Name: Industrial Gateway
Function: Industrial gateways are widely used in fields such as industrial automation, smart cities, smart agriculture, PLC control, robotics, intelligent transportation, and environmental monitoring. They eliminate the need for wiring, reduce maintenance costs, and are easy to operate with a high level of user-friendliness. |
