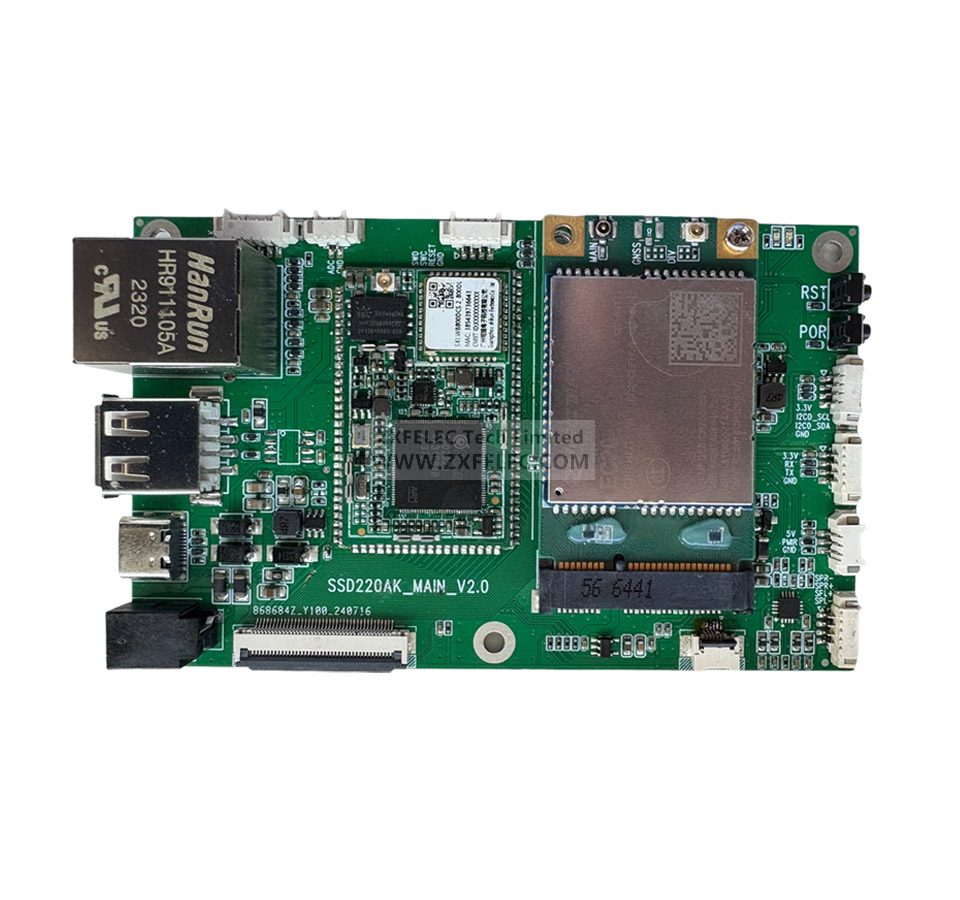

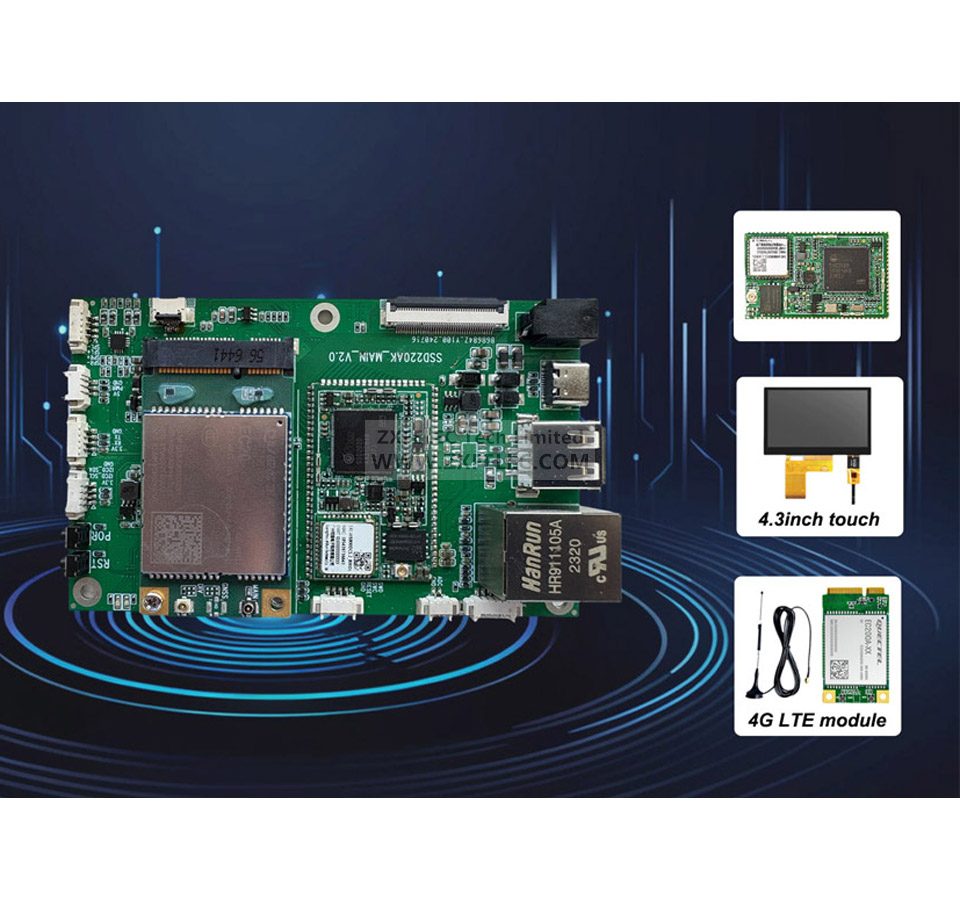

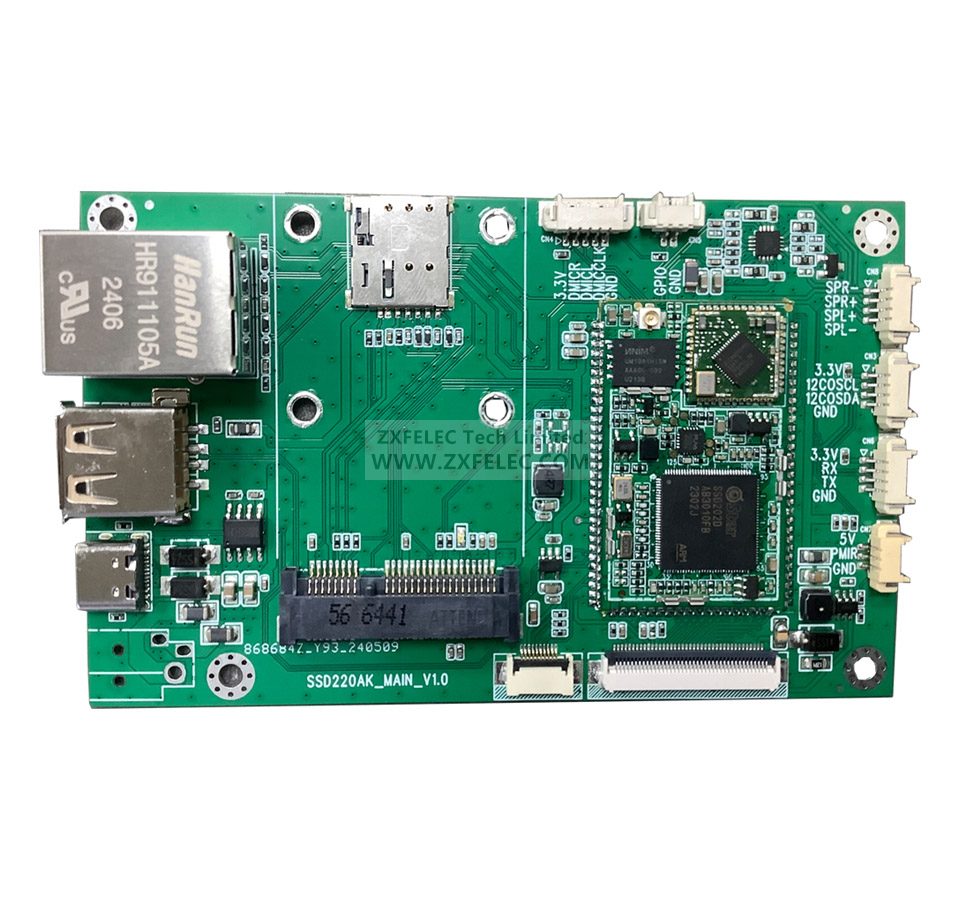

Model：ZXFELEC_NETHEART.CRB01
|
10
|
2-channel DMIC audio sample input.
|
|
2
|

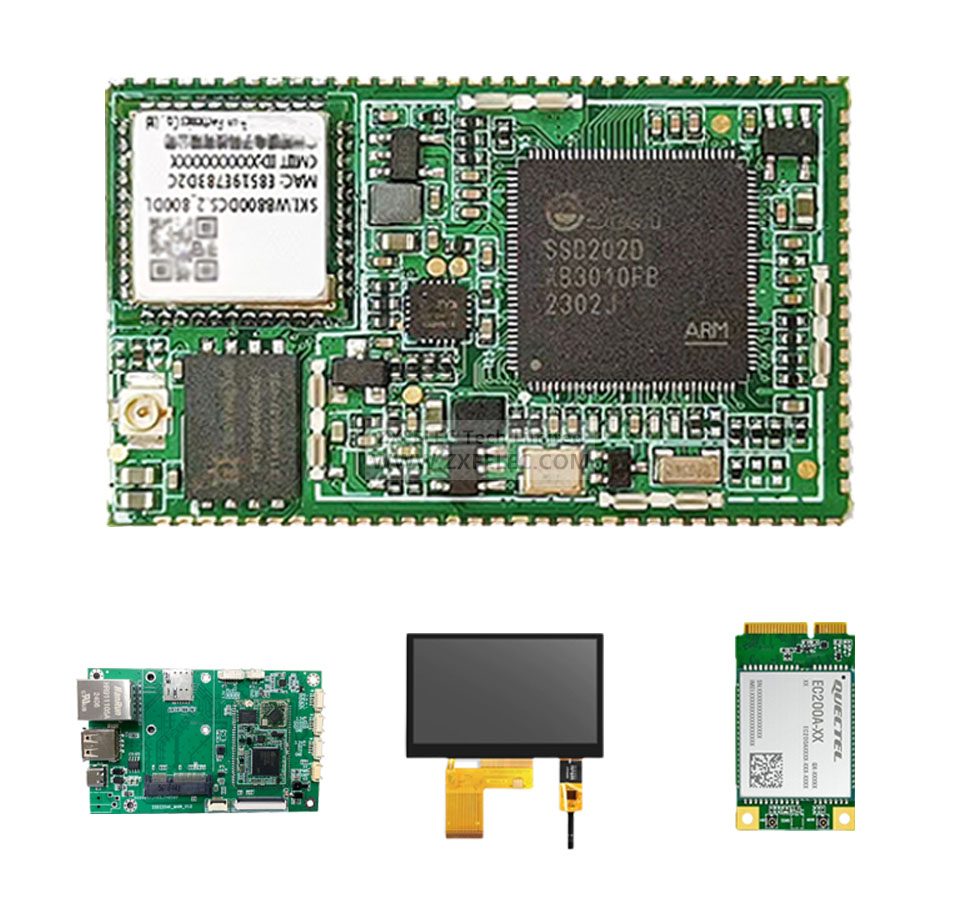

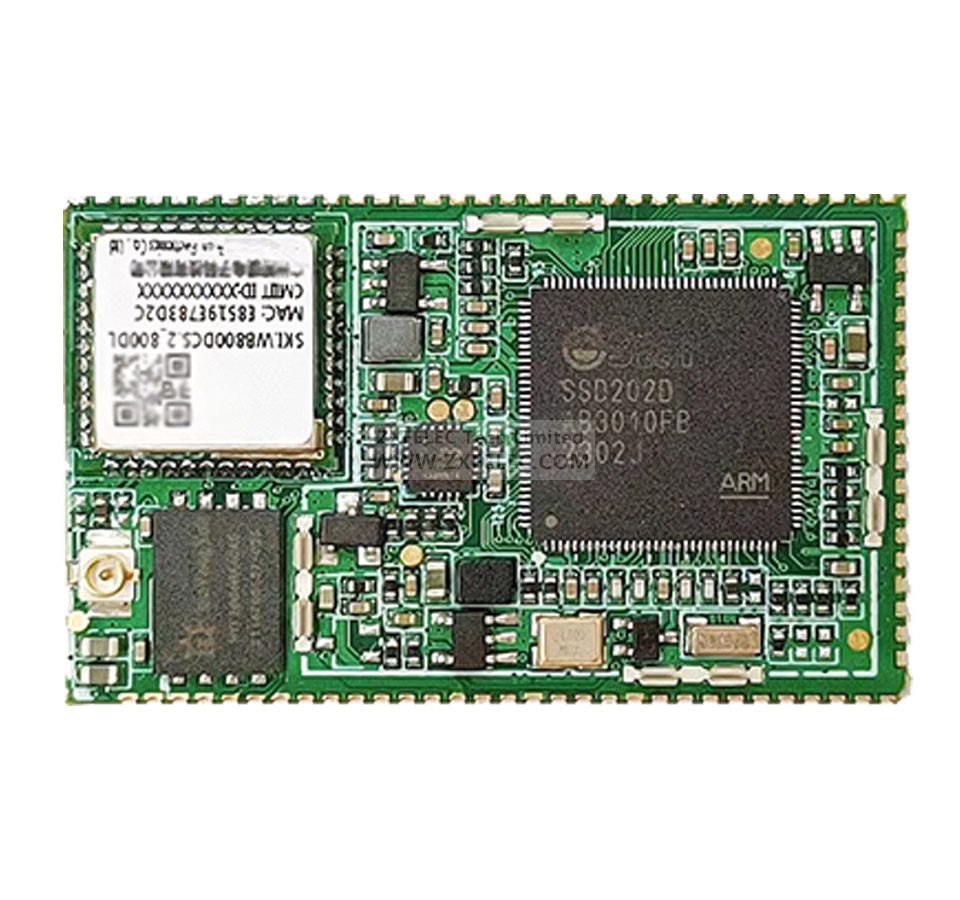

Name：SSD202D Core board SOM
|
11
|
USB HOST：2-ports USB2.0 HOST full speed
|
|
3
|
Main CPU: SSD202D dual core Cortex-A7 1.2GHz
|
12
|
Stereo analog audio LINE output
|
|
4
|
Memory cache：SIP DDR3 128MB.
|
13
|
2-channel UART extension.
|
|
5
|
Storage：SPI NAND 256MB.
|
14
|
I2C: 2-channel, speed: 400KHz
|
|
6
|
Wireless: WIFI 2.4G + BLE
|
15
|
SPI expansion port.
|
|
7
|
Ethernet: Dual RJ45, integrated MAC+PHY.
|
16
|
G2d graphics accelerator, scaling and conversion
|
|
8
|
video decoder: H.264/H.265 HW decoder 1080P30
|
17
|
Operating system：Support Linux OS
|
|
9
|
LCD: MIPI/RGB, resolution: 1920*1080P60
|
18
|
Installation: SOM 25 * 40 (mm) with stamped holes
|
|

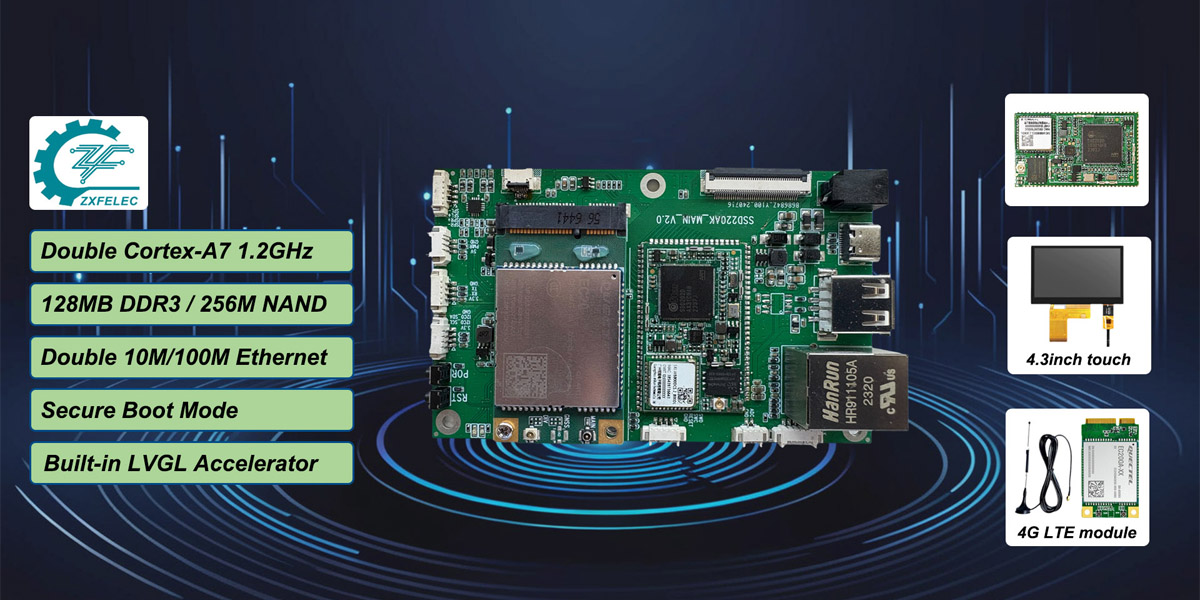

1. CPU: ARM Cortex-A7 Dual-Core 1.2GHz, with built-in Neon and FPU, and DMA engine.
|
|
2. SIP DDR3: 128MB high-speed cache.
|
|
3. System Storage: 256MB integrated storage, expandable via EMMC and SD NAND.
|
|
4. G2D Graphics Engine: Supports Bitblt, format/color space conversion, rotation, etc.
|
|
5. H.264/H.265 AVC Decoder: Integrated, supports Full HD (1920x1080) at 60fps.
|
|
6. JPEG Encoding: Supports baseline encoding and YUV422/YUV420 formats.
|
|
7. OSD: Interface/system layered display support.
|
|
8. Display Interface: RGB/MIPI, max output of 1920x1080P at 60Hz.
|
|
9. Audio: 2-channel DMIC + 1-channel AMIC, stereo DAC line output.
|
|
10. Recording ADC Pre-Amplifier: Digital gain range: -63.5dB to +33dB.
|
|
11. USB Ports: 2*USB2.0 HOST for peripherals like mice, keyboards, and Udisk.
|
|
12. Ethernet Ports: Two 10/100Mbps, built-in Ethernet PHY with extended PHY support.
|
|
13. SPI Port: SPI communication port, expandable for external storage.
|
|
14. Security: AES/DES/3DES/RSA-I/SHA-256 support with secure boot.
|
|
15. RTC Clock: Built-in, ultra-low power (<3uA) for long battery life.
|
|
16. Peripheral Extensions: 2*PWM, 1*SPI, 2*I2C, 1*IR, SAR, GPIO.
|
|
17. UART Ports: Two channels for debugging and communication.
|
|
18. Wireless: Onboard 2.4G Wi-Fi + BLE.
|
|
19. Power Management: Low power consumption for onboard chips.
|
|
20. Operating System: Support Linux OS.
|
|
21. Core Board Size: 25mm * 40mm, with stamp holes.
|
| 1. Smart Security Devices: Such as doorbell cameras, smart locks, and surveillance terminals. |
| 2. Display Control Panels: Home control screens, industrial HMI, and central control panels. |
| 3. Video Display Tags: Shelf price tags, advertising screens, and dynamic information display. |
| 4. Wireless Casting Devices: Wireless casting adapters and multimedia playback devices. |
| 5. Smart Appliances: Refrigerator displays, washing machine panels, and microwave oven. |
| 6. Charging Station Control: Display and control terminals for electric vehicle charging stations. |
| 7. Audio Broadcasting Systems: Intelligent public broadcasting and background music players. |
| 8. Digital Signage: Indoor and outdoor advertising screens and information display terminals. |
| 9. Medical Terminal Devices: Patient monitoring screens and medical information systems. |
| 10. Retail POS Terminals: Interactive checkout displays and product promotion screens. |
| 11. Educational Devices: Smart classroom displays and multimedia learning equipment. |
| 12. Smart Meeting Devices: conference nameplates, meeting sign-in, recording & playback. |
| 13. Industrial IoT Solutions: Machine monitoring interfaces and remote control panels. |
 |
Name: Elevator Smart Display
Description: elevator status, floor information, and broadcasts messages. Connects to the network for remote monitoring and the publication of safety information. |
 |
Name: Smart Voice Control Panel
Features: Screen shows the status of connected smart home devices and sensor data. It supports control via a remote app and enables hands-free operation through voice commands for controlling connected devices, providing a seamless and convenient user experience. |
 |
Name: Indoor Video Intercom
Description: Indoor video intercom system with support for 7-inch, 10.1-inch, and other high-definition screens. It integrates network functions such as SIP and can connect to smart home systems for remote access and monitoring. |
 |

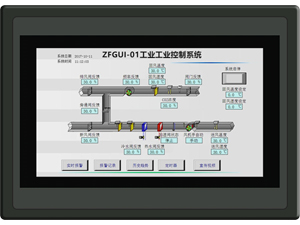

Name: Industrial Display HMI
Function: Equipped with powerful graphics processing capabilities, compatible with GUI software like QT and LVGL for smooth operation. It supports remote transmission and control via network, RS485, RS232, and other interfaces, tailored to meet the needs of specific application scenarios. |
 |
Name: Digital Price Tag for Retail
Function: Supports dual-screen display for showing different product information on the front and back, or single-screen display for product and price details. It allows flexible combinations and uses video or images to showcase detailed product specifications. Product content is updated and maintained through the ERP system, helping reduce operational costs for retailers. |
 |
Name: Industrial Gateway
Function: Industrial gateways are widely used in fields such as industrial automation, smart cities, smart agriculture, PLC control, robotics, intelligent transportation, and environmental monitoring. They eliminate the need for wiring, reduce maintenance costs, and are easy to operate with a high level of user-friendliness. |
